Flat Full Bridge Household Micro Mini Body Kitchen Smart Electronic Weighing Load Cell 50kg 75kg 100kg

No.HBTLM940D
Product Orgin:China Capacities:10-50KG Material:MANGANESE STEEL Dimension:34X34XHMM Rated Output:2.0mV/V Protection Class:PI65 Payment Terms:FOB OR EXW Shenzhen OR GUANGZHOU
  • Flat Full Bridge Household Micro Mini Body Kitchen Smart Electronic Weighing Load Cell 50kg 75kg 100kg

Description

Product Details

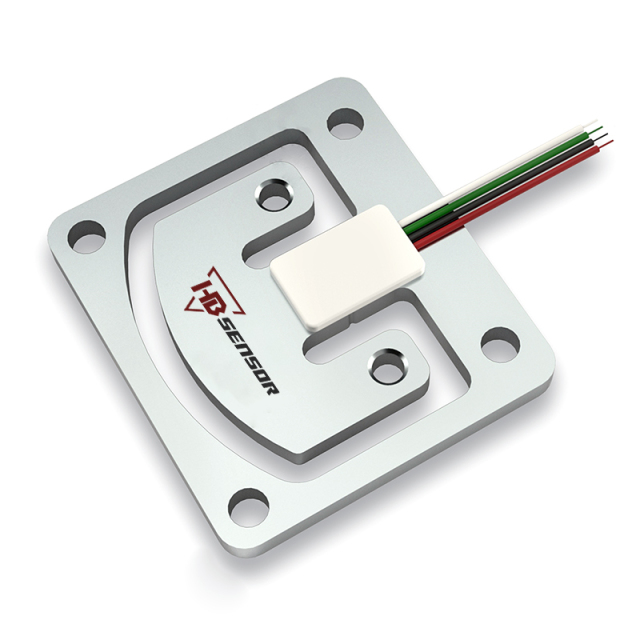

Flat Full Bridge Miro Mini Weighing Load Cell
Mini Micro Load Cell 10-50kg is for body scales, Kitchen Scales ,smart shelves, etc. which need high-quality weighing condition, made of MANGANESE STEEL material.
Micro load cells provide excellent performance in applications from sensitive medical devices to robust industrial machinery. Their adaptability ensures precise measurements and reliability across sectors.
With the expansion of intelligent application market,more emerging products have been developed, such as smart bottle, smart shelves, smart body scale and so on. As a result, the demand for internal micro-electronic components is higher and higher. The micro load cell can meet these application requirements .The shelves are getting smarter.
Key Features:
MANGANESE STEEL
Half Bridge load cells
IP65
Easy installation


Usage & Applications:
Body Scales
Kitchen Scales
Smart Micro Weighing Machine
Other microelectronic weighing systems.


Dimension:


 Specification:
Rated Capacities Temperature Effect On Output
50-100kg ±0.1%R.O./10℃
Rated Output Temperature Effect On Zero
1.0/1.5/1.8±0.15 mV/V ±0.1 %R.O./10℃
Zero Balance Input Impedance
 ±0.5 mV/V  1000±10Ω
Non-linearity Output Impedance
0.05 %FS.  1000±10Ω
Hysteresis Insulation Impedance
0.05 %FS. ≥2000 MΩ
Repeatability Recommended Excitation
0.05 %FS  3VDC ~ 10VDC
3mins Creep Maximum Excitation
0.1 %FS/3MIN 5-10VDC
30mins Return OperatingTemperatureRange
0.02 %R.O. -10~40 ℃
Safe Overload Construction
120 %R.O. Aluminum Alloy
Ultimate Overload Protection Class
150%R.O. IP65
Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-)  450MM
MOUNTING HOLE SIZE
Model Connection
.
